5kW All-in-One Solar System
NEPA went off.
Life ON.
A simpler route to serious backup: 5kW-class inverter power and about 5.22kWh of battery storage in one cabinet.
Designed for buyers who want a cleaner integrated system instead of choosing and mounting a separate inverter and battery.
Check delivery and place your order
Choose how you’d like to pay.
Can’t continue your payment?
Enter your order details and we’ll email a secure payment link to the address the order was placed with.
Something went wrong loading the order form. Please refresh this page to try again.
Estimate how far 5.22kWh goes at your real load
Enter the appliances you expect to keep on and use their average combined watts to estimate backup time.
Estimate only. Actual runtime depends on load, conversion losses, usable battery settings and appliance cycling.

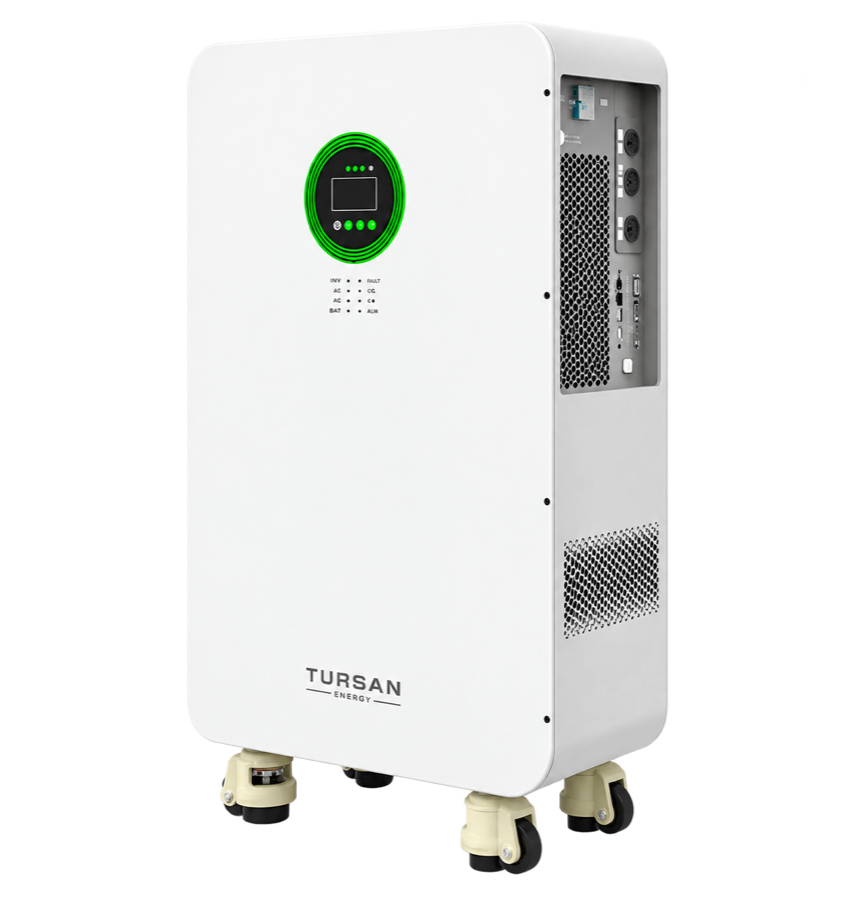

Inspect the JC-YT-5KW AIO from every angle.
Every verified specification, in one place.
Specifications
- Battery capacity
- 5,220Wh (LiFePO4)
- AC output
- 5,000W rated / 10,000W peak
- Weight
- 61 kg
- Dimensions
- 880×550×315mm
- Cycle life
- 6,000+ cycles to 80% capacity
Charging options
- Wall charging
- ~6 hours (0–100%)
- Solar charging
- 200W panel recommended (sold separately)
- Car charging
- 12V car port adapter included
Solar compatibility
Compatible with any solar panel up to 200W with an MC4 connector. For optimal charging, we recommend a 200W monocrystalline panel. Solar panel sold separately.
What’s in the box
- Tursan JC-YT-5KW All-in-One Solar Power System
- AC charging cable
- Car charging cable
- Solar/DC charging cable (MC4)
- 1 × free UK-to-Nigerian plug adapter
- User manual
Real customers. Real power.
Watch how people are using the YC1100.
The numbers behind your backup power
Power a TV, fan, and lights for 8+ hours on a single charge. Enough for a full evening.
The same battery chemistry trusted in BYD electric vehicles - stable, safe, and built for heat.
One full cycle a day for over 10 years of expected battery life.
Charge from the wall in 6 hours, or add a solar panel for off-grid charging. Car charging available too.
Safe for laptops, TVs, medical devices. 2,000W peak for motor start-up surges.
Full manufacturer warranty against defects. See warranty policy.
Common Questions
Does it already include a battery?
Yes. The inverter and about 5.22kWh of LiFePO4 storage are integrated in the same cabinet.
How much load can it run?
It is a 5kW-class system. The real appliance mix and any startup surges still need to be checked.
How much solar should I connect?
Design the solar array within the 4kW working limit, 120–450V MPPT range and 22A input constraint. Final string design should be confirmed before installation.
Does it need professional installation?
Yes. It is an integrated fixed system, not a plug-and-play portable power station.
Why choose all-in-one instead of separate components?
It reduces the number of major boxes to select and mount, which can make the installation cleaner and easier to manage.
How long will the 5.22kWh battery last?
That depends on the average load. Use the load calculator rather than a fixed runtime promise.
